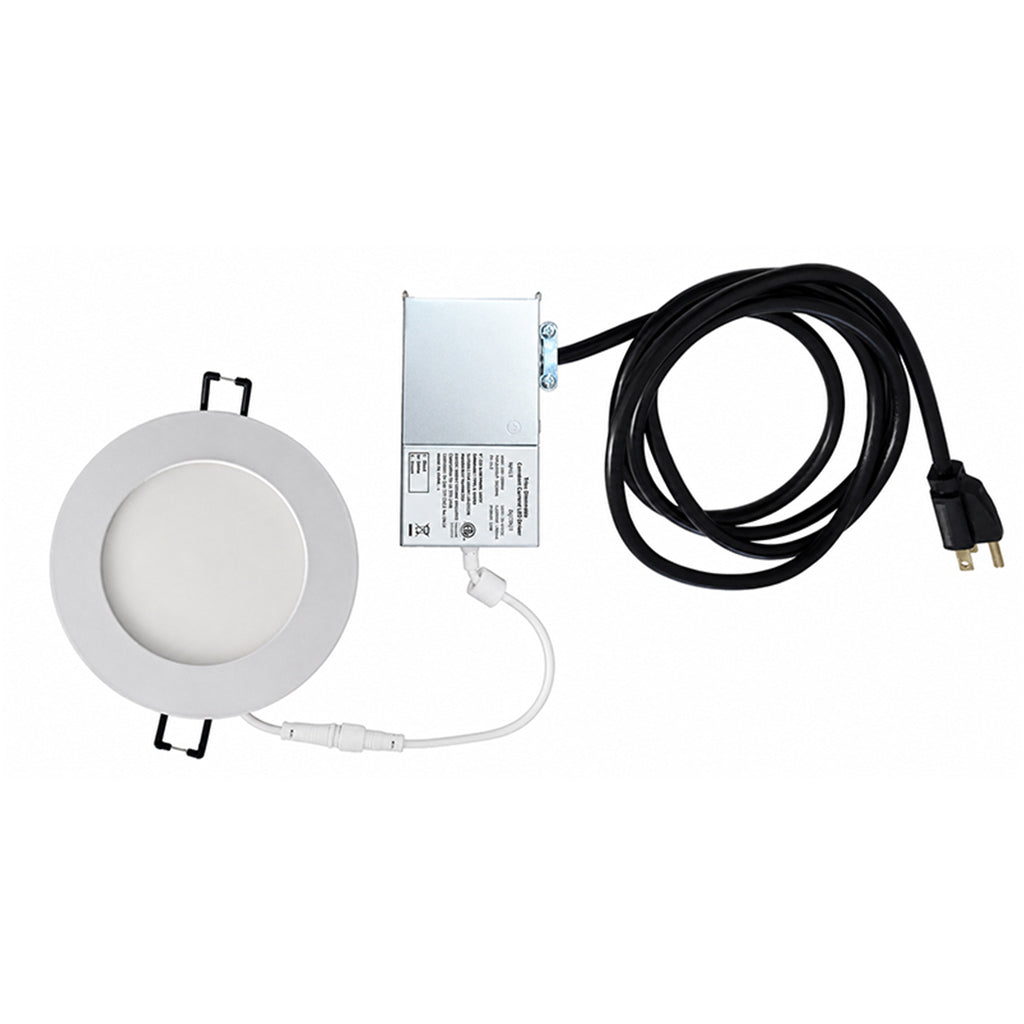

6" Slim Panel Recessed LED Light with 5 CCT select


Price:
$68.76

Description

6 inch Recessed, Low Profile LED Light

with 5 color temperature select (2700K, 3000K, 4000K, 5000K, 6000K)

  • Recessed, low profile LED fixture that offers the option of choosing your color temperature from toggle switch on power box.
  • CCT is controlled by the toggle switch on junction box. From left to right, CCT is 2700K, 3000K, 4000K, 5000K, 6000K.
  • 3 wire cord set attached to power box.
  • Easy to install and the low profile design allows mounting in confined ceiling areas or soffits.
  • Spring clips hold fixture firmly in place.
  • Multiple fixtures can be ganged together using cord liberators (sold separately).
  • Dimmable using triac dimmer
  • ETL Listed
  • Also available in a 4 inch fixture, part ID: WT-EW4C-9 - click here for details
Optical DATA
  • Lumen @ 2700K: 1016lm
  • Lumen @ 3000K: 1095lm
  • Lumen @ 4000K: 1208lm
  • Lumen @ 5000K: 1166lm
  • Lumen @ 6000K: 1216lm
  • Color Temperature: 27/30/40/50/60K Tunable
  • CRI: >80
  • Beam Angle: 110°
  • ELECTRICAL DATA
      • Input Voltage: 110 - 130VAC
      • Output Voltage: 28 - 42VDC
      • Amper: 340mA
      • Power: 15Watt
      • Power Factor: >0.94
      • Operating Temp.: -20 - 40°C
    OTHER DATA
        • Dimming: Triac base dimmable
        • IC Rated: Type IC Rated
        • Location Approved: Wet Location
        • Certification: cETLus Energy Star
        • Lifespan: 50,000hrs
        • Warranty: 5 years
        • Panel Diameter: 6-3/4" (172mm)
        • Panel Height: 5/12" (11.2mm)
        • Cut Out Size: 6" (152mm)
        • Power Box Length: 4-1/4" (108mm)
        • Power Box Width: 2-3/8" (60mm)
        • Power Box Height: 1-3/8" (35mm)

    6" Slim Panel Recessed LED Light Data Sheet

    6" Slim Panel Recessed LED Light Video
